Bimetallic Twin Ntsia Hlau
Screw txoj kab uas hla: Φ20 - Φ330mm
L/D Ratio: 16:1 - 35:1
Nto RoughnessRa: 0.4 μm
Linearity: 0.015 hli / m
Zhejiang Zhongyang Ntsia Hlau Manufacturing Co., Ltd. Nrog kev paub dhau los, peb zoo siab tos txais koj los yuav cov khoom siv ruaj khov bimetallic ntxaib ntsia hlau los ntawm peb lub hoobkas. Tag nrho cov khoom customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Khoom Taw Qhia

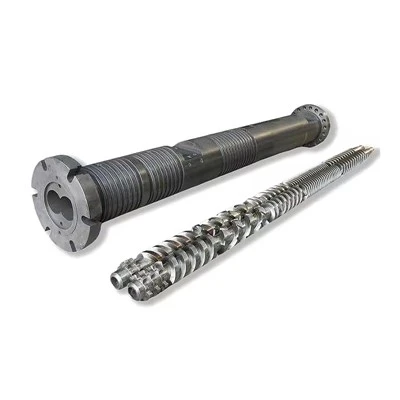

Peb Bimetallic Twin Screw & Barrel system sawv cev rau kev dhia mus rau hauv kev ua haujlwm ntev rau kev ua cov ntaub ntawv abrasive thiab corrosive. Los ntawm kev sib koom ua ke ntawm ultra- tawv alloy hauv ob sab phlu rau hauv lub hauv paus tawv steel, qhov kev daws teeb meem no ua rau muaj kev pab cuam lub neej ntev, txo qis sijhawm thiab tag nrho cov nqi ntawm cov tswv cuab hauv cov khoom nyuaj tshaj plaws.
Product Description
Cov txheej txheem no yog tsim los daws cov teeb meem tseem ceeb ntawm kev hnav hauv extrusion. Lub thoob yog centrifugally cam khwb cia nrog ib tug tuab, uniform txheej ntawm hnav thiab corrosion-resistant bimetallic alloy (xws li cov raws li cobalt los yog npib tsib xee), uas yog ces fused mus rau ib tug siab - lub zog sab nrauv steel plhaub. Cov ntsia hlau sib txuam feem ntau ntog nrog cov khoom sib xyaw ua ke los yog txheej txheej.
Lub tshuab bimetallic no tsim ib qho chaw ua hauj lwm nrog tshwj xeeb tsis kam rau abrasive fillers xws li calcium carbonate, iav fiber, thiab titanium dioxide. Nws kuj tseem muaj kev tiv thaiv zoo tshaj plaws tiv thaiv chloride-induced corrosion los ntawm tej yam PVC formulations los yog lwm yam halogens. Qhov tshwm sim yog qhov txuas ntxiv ntawm cov khoom siv lub neej-feem ntau los ntawm kev sib npaug piv rau cov qauv nitrided steel-thaum tswj kev ua haujlwm ruaj khov thaum lub sijhawm. Qhov kev daws teeb meem no yog qhov tseem ceeb rau kev tswj xyuas cov khoom seem sib xws thiab zoo hauv cov ntawv thov uas hnav yuav ua rau muaj kev ua haujlwm sai sai thiab kev tsim khoom tsis tu ncua.
Peb Qhov Zoo
- Exceptional Wear Resistance: Bimetallic hauv ob sab phlu muaj kev tiv thaiv zoo tshaj plaws tiv thaiv abrasive fillers, multiplying tivthaiv lifespan.
- Kev Tiv Thaiv Corrosion: Cov ntsiab lus siab alloy muab kev tiv thaiv zoo heev rau tshuaj tua kab mob los ntawm polymers thiab additives.
- Ntev -Lub Sij Hawm Ua Si: Ua kom muaj kev cuam tshuam sab hauv kom ruaj khov rau cov khoom tsim tau zoo nyob rau lub sijhawm ntev.
- Txo Tus Nqi Lub Neej: Txo qhov zaus ntawm kev hloov pauv thiab lub sijhawm tsis tau npaj tseg, muab cov txiaj ntsig zoo dua ntawm kev nqis peev.
Hnub tim
|
Parameter |
Specification |
|
Ntsia Hlau Diameter |
Φ20 - Φ330 hli |
|
L/D Ratio |
16:1 – 35:1 |
|
Khoom siv (Screw / chim Base) |
38CrMoAlA (SACM645) |
|
Khoom siv (Alloy tes tsho / Liner) |
4Cr5MoSiV1 (SKD61, H13) |
|
Nto Roughness |
Ra 0.4 m |
|
Linearity |
0.015 hli / m |
|
Nitrided Hardness |
HV 850 – 1000 |
|
Nitrided Qhov tob |
0.5-0.8 hli |
|
Chrome Txheej Thickness |
0.03-0.05 hli |
Daim ntawv thov
Qhov no yog engineered rau feem ntau xav tau thiab abrasive ua ib puag ncig. Nws yog qhov kev xaiv zoo tshaj plaws rau kev tuav cov qib siab - cov khoom sib xyaw ua ke (piv txwv li, nrog calcium carbonate, iav fiber ntau, lossis cov khoom siv ntxhia), nplaim hluav taws- cov khoom siv hluav taws xob, thiab cov yas engineering. Cov ntawv thov tseem ceeb suav nrog siab - zoo masterbatch ntau lawm, rov ua dua cov khoom ntim lossis cov khoom siv ntxiv, thiab ua cov txheej txheem PVC corrosive. Nws yog qhov tseem ceeb hauv kev lag luam uas hnyav hnyav hnyav yog qhov tseem ceeb rau kev tswj cov khoom tsim tau thiab cov khoom sib xws.
FAQs
1.Q: Cov ntaub ntawv dab tsi tuaj yeem ua rau koj cov txheej txheem ntxaib ntsia hlau sib txuas?
A: Peb qhov system yog engineered rau exceptional versatility. Nws ua tau zoo ntawm PVC, polyolefins (PP, PE), engineering plastics, ntoo -plastic composites (WPC), thiab ntau yam sau los yog cov khoom siv ntxiv. Cov qauv tsim qauv tso cai rau peb los kho cov ntsiab lus ntawm cov ntsia hlau thiab cov kav dej kom haum rau qhov tshwj xeeb shear, tshav kub, thiab kev sib xyaw ntawm koj cov khoom.
2.Q: Vim li cas peb yuav tsum xaiv koj dua lwm tus neeg muag khoom?
A: Kev xaiv peb txhais tau tias tau txais ib lub sijhawm ntev - tus khub kev cob qhia, tsis yog tus neeg muab khoom siv xwb. Peb muab cov ntaub ntawv hwm zoo, sib sib zog nqus customizability, pov thawj zoo tswj, thiab teb cov kws tshaj lij kev txhawb nqa kom ntseeg tau tias koj cov khoom tiav, kev ua tau zoo, thiab txo nqi tag nrho ntawm cov tswv cuab.
3.Q: Koj cov khoom puas tsim nyog rau kev ua haujlwm siab -cov ntaub ntawv PVC?
A: Yog, lawv tau tsim tshwj xeeb rau cov kev cov nyom no. Rau cov tebchaw uas muaj zog heev (xws li, nrog cov calcium carbonate siab lossis cov ntsiab lus ntawm cov ntoo fiber ntau), peb muab kev kho kom zoo ntawm cov ntsia hlau thiab bimetallic liners rau cov thoob los muab kev hnav siab tshaj plaws.
Cim npe nrov: Tuam Tshoj bimetallic ntxaib ntsia hlau manufacturers, hoobkas
